The side facing the media chamber is provided with moulded grooves set at 90° angle.
The moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness.
This makes it extremely resistant to the attack of boiler water.
Applications:
Up to 35 bar saturated steam, reflex glasses provide the optimum solution:
The reflex glasses are corrosion resistant and provide an absolutely clear indication.
Reflex glasses can be used with all media except steam at the service conditions up to 400 bar pressure or up to 400°C operating temperature.
Reflex Gauge Glass can be used with all media except steam at the service conditions up to 400 bar pressure or up to 400°C operating temperature.
Description
It is mainly used to observe the level of the boiler or other equipment filled with liquid, also can be used as watching glass window for thermal and chemical reaction.

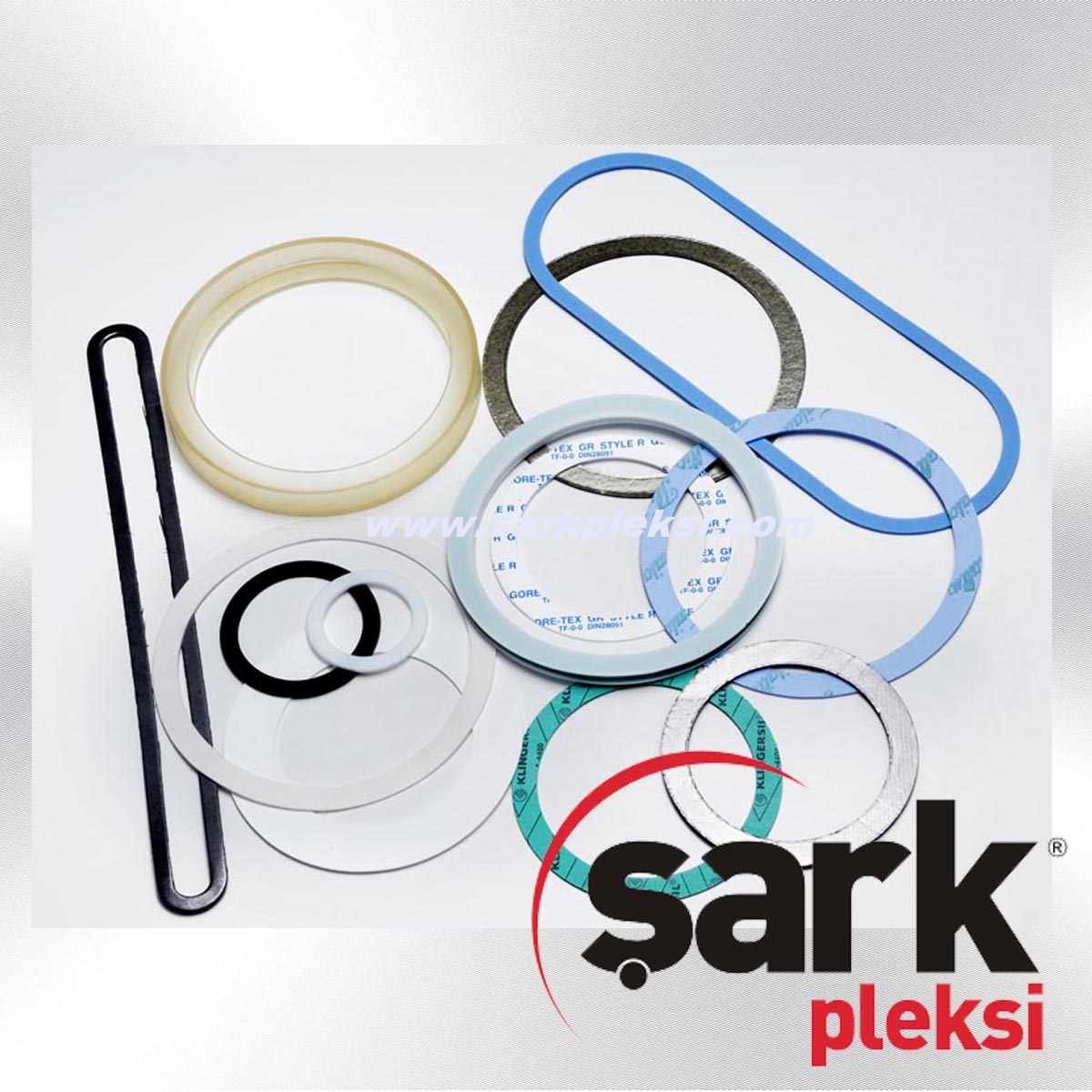

Dimensions of round sight glass.
Special requirement is available, such as dip hole in center, polishing edge and so on.
Transparent level gauge glass:
Transparent (smooth) level gauge glass is used to observe the liquid level of the boiler or other liquid tanks. Due to the boiler water high temperature and pressure working environment, borosilicate or aluminosilcate glass is used to meet the requirement.
Dimensions of
type B
Length
width
thickness

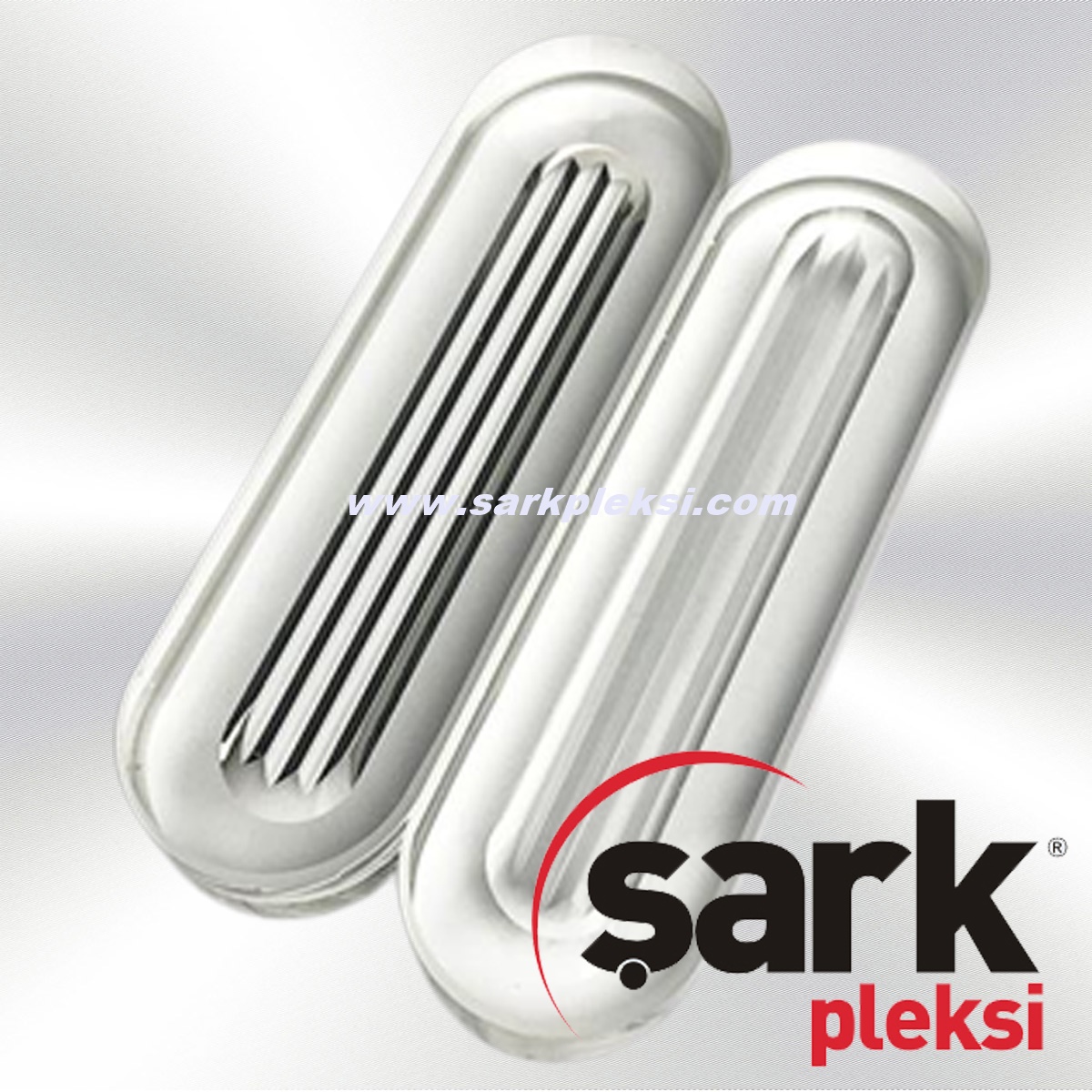

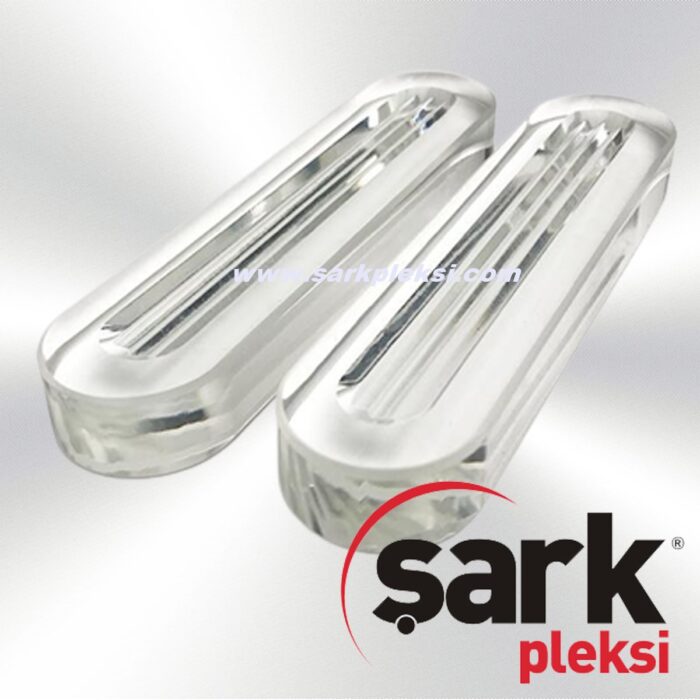

Reflex Gauge Glass
B-1
95
34
17
Reflex Gauge Glass
B-2
115
34
17
Reflex Gauge Glass
B-3
140
34
17
Reflex Gauge Glass
B-4
165
34
17
Reflex Gauge Glass
B-5
190
34
17
Reflex Gauge Glass
B-6
220
34
17
Reflex Gauge Glass
B-7
250
34
17
Reflex Gauge Glass
B-8
280
34
17
Reflex Gauge Glass
B-9
320
34
17
Reflex Gauge Glass
B-10
340
34
17
Reflex Gauge Glass
B-11
370
34
17
Reflex Gauge Glass
B-12
400
34
17
Dimensions of
type B
Length
width
thickness
Reflex Gauge Glass
A-1
115
30
17
Reflex Gauge Glass
A-2
140
30
17
Reflex Gauge Glass
A-3
165
30
17
Reflex Gauge Glass
A-4
190
30
17
Reflex Gauge Glass
A-5
220
30
17
Reflex Gauge Glass
A-6
250
30
17
Reflex Gauge Glass
A-7
280
30
17
Reflex Gauge Glass
A-8
320
30
17
Reflex Gauge Glass
A-9
340
30
17
Reflex level gauge Glass
Reflex Glass Level Gauges
Reflex glass level gauges
gauge glasses are suitable for installation in liquid level gauges of almost any … Transparent gauge glass; Reflex gauge glass; Round gauge glass
